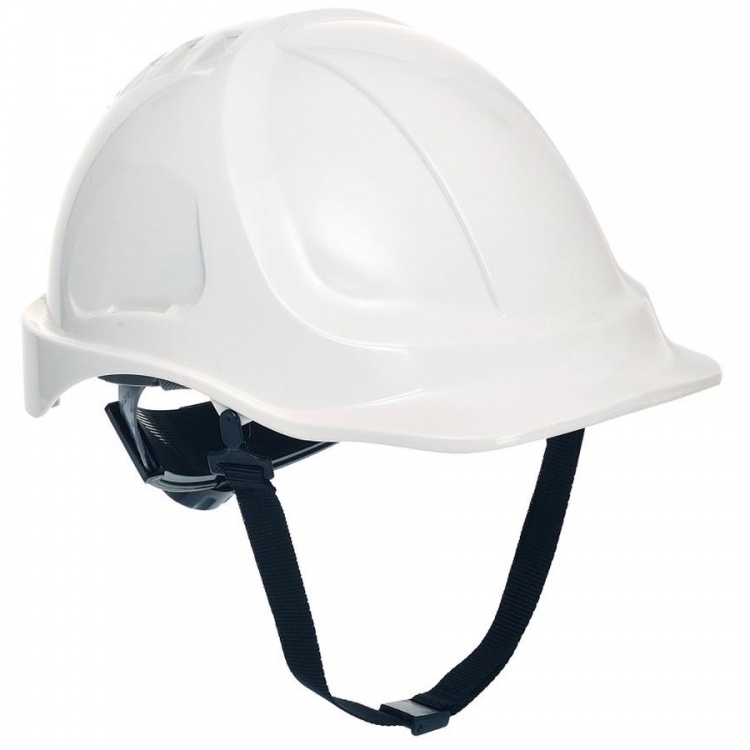

Portwest PS54 Endurance Plus Helmet

Features:

• CE-CAT III
• Electrical insulation up to 1000Vac or 1500Vdc (EN 50365)
• Protection against Molten Metal
• Lateral deformation
• 6 points textile harness
• Wheel ratchet size adjustment for easy fitting
• 7 years shelf life from manufacturing date outlined in product user sheet
• Chin strap included
• Compatible with PW47 and PS47 Clip-On Ear Muff
• Compatible accessories available

Mandatory Tests:

• Impact*: Energy spread to the head form must not exceed 5kN after the fall of an object of 5 kg at 1m high.
• Penetration*: The tip of the test mass used (3 kg from 1m height) must not come into contact with the skull.
• Flammability: The helmet is exposed to a flame and it must not burn with flame emission more than 5 seconds after removal of the flame.
• Impact and Penetration tests* are performed room temperature, at +50 degrees and at -10 degrees.

Optional Tests:

• Resistance at extreme temperatures: testing impact and penetration are performed at +150 degrees, at -20 degrees or -30 degrees temperatures.
• Electrical properties: Protects against a short accidental contact with electric leads under voltage up to 440 Vac.
• Lateral deformation: Protects against lateral compressions. The maximum deformation of the helmet should be less or equal to 40mm (LD)
• Molten metal splashes: The helmet is not deformed or penetrated by splashes of molten metal (MM)

EN 50365: 2002 – Insulating helmets for use on low voltage installations

This standard is for helmets used for working live or close to live parts on installations not exceeding 1000 V a.c or 1500 V d.c. Testing to EN 50365 exceeds testing under EN397 for electrical properties.

Marking: double triangle + class + batch number.
