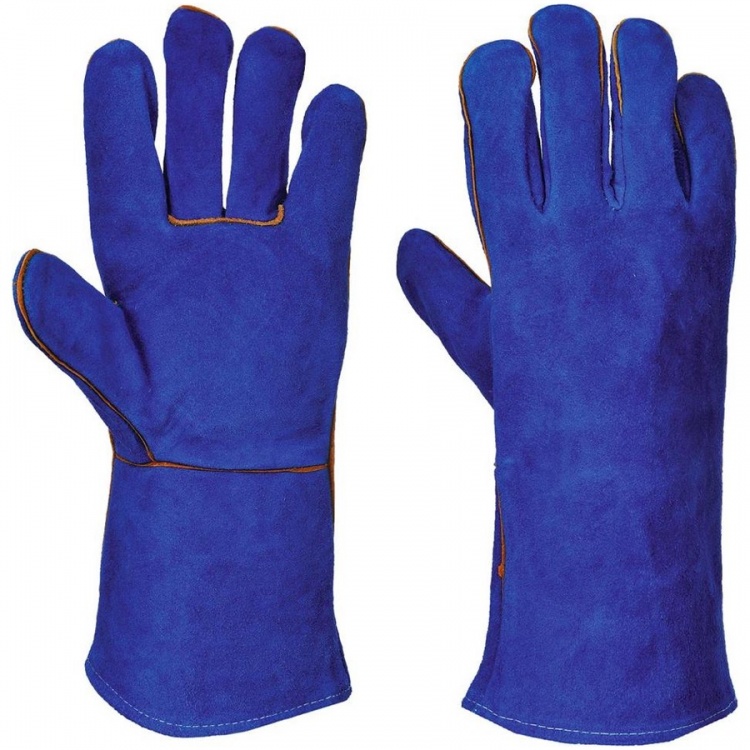

Portwest A510 Welders Gauntlet
The Portwest A510 is a tough 14" split leather gauntlet providing protection against range of heat related tasks. Ideal for welding, metal handling etc.
EN 420, EN 388, EN 407, EN 12477, ANSI/ISEA 105-2011
Only Available is Size: XL 10.5
Product Technical Information
Standards
- EN ISO 21420: 2020
- EN 388: 2016 + A1: 2018 4222X
- EN 12477: 2001 Type A
- EN 407: 2020 412142
- ANSI/ISEA 105: 2016 CUT Level A2
Documentation
Protective Gloves : General Requirements
EN420 : 2003 + A1 2009
This standard defines the general requirements for glove design and construction, innocuousness, cleaning instructions, electrostatic properties, sizing, dexterity, water vapour transmission and absorption along with marking and information
EN 388
Gloves giving protection from mechanical risks
Protection against mechanical hazards is expressed by a pictogram followed by four numbers (performance levels), each representing test performance against a specific hazard.
1 Resistance to abrasion
Based on the number of cycles required to abrade through the sample glove (abrasion by sandpaper under a stipulated pressure). The protection factor is then indicated on a scale from 1 to 4 depending on how many revolutions are required to make a hole in the material. The higher the number, the better the glove. See table below.
2 Blade cut resistance
Based on the number of cycles required to cut through the sample at a constant speed. The protection factor is then indicated on a scale from 1 to 4.
3 Tear resistance
Based on the amount of force required to tear the sample.
The protection factor is then indicated on a scale from 1 to 4.
4 Puncture resistance
Based on the amount of force required to pierce the sample with a standard sized point. The protection factor is then indicated on a scale from 1 to 4.
Protective Gloves Against Thermal Risks (Heat and/or Fire)
EN 407: 2004
This standard specifies thermal performance for protective gloves against heat and/or fire. The heat and flame pictogram is accompanied by a 6 digit number.
Requirements
Performance levels 1-4
f) resistance to a large melting metal spray
Amount of spray required to raise the glove to a certain temperature.
Performance levels 1-4
e) resistance to small melting metal spray
Amount of spray required to raise the glove to a certain temperature.
Performance levels 1-4
D) resistance to radiating heat
Time required to raise a given temperature level
Performance levels 1-4
c) resistance to convective heat
time during which the glove is able to delay the transfer of heat of a flame
Performance levels 1-4
b) resistance to contact heat
Temperature (within the range of 100 degrees to 500 degrees) at which the person wearing the gloves will not feel any pain (for a period of at least 15 seconds).
Performance levels 1-4
A) Resistance to flammability:
Time during which the material remains lit and continues to be consumed after the ignition source has been eliminated.
Protective Gloves For Welders
EN 12477: 2001
This European standard specifies requirements and test methods for protective gloves for use in manual metal welding, cutting and allied processes. According to their performance, protective gloves for Welders are classified into two types.
Type A: lower dexterity (with higher other performance).
Type B: Higher dexterity (with lower other performance).
ANSI/ISEA 105-2011
American National a Standard for Hand Protection
This standard addresses the classification and testing of hand protection for specific performance properties related to chemical and industrials applications. Hand protection includes gloves, mittens, partial gloves, or other items covering the hand or a portion of the hand that are intended to provide protection against or resistance to a specific hazard.
